Rest API

In the Hello World example, we learned how to create a simple synchronous API request-response using a function backend. In this example, we will learn to build a REST API with asynchronous response.

Async Response

Let’s say we want our api route to trigger an Event that invokes a chain of functions (linear DAG). The output of the function is consumed by a websocket channel and eventually a HTML page using a websocket client. For the purposes of this example, we create a single html file for testing. The function implementations don’t matter.

name: example-rest-async

routes:
  /api/message:
    method: POST
    event: ProcessStart

events:
  ProcessStart:
    function: f1

functions:
  f1:
    function: f2
  f2:
    function: f3
  f3:
    channel: c1

channels:
  c1:
    handler: default

pages:
  app:
    dir: .
    dist: dist
    config_template: index.html
    skip_deploy: true

Example: examples/patterns/rest-async

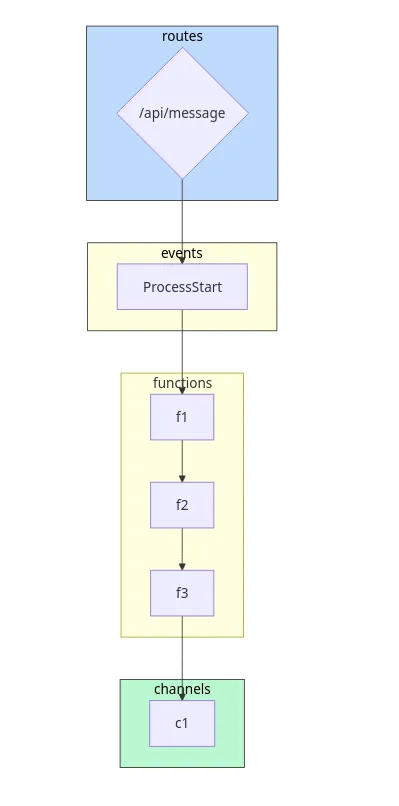

To visualize the topology, run:

cd examples/patterns/rest-async
tc visualize

Now create a sandbox of the topology

tc create -s yoda --profile dev
..
open dist/index.html

Tracking Progress

Now that we have an asynchronous websocket response, can we also track the progress of the actual processing (f1 -> f2 -> f3) ? Yes, we can add a channel as an interceptor to each of the functions.

name: example-rest-progress

routes:
  /api/message:
    method: POST
    event: ProcessStart

events:
  ProcessStart:
    function: f1

functions:
  f1:
    function: f2
    channel: c1
  f2:
    function: f3
    channel: c1
  f3:
    channel: c1

channels:
  c1:
    handler: default

pages:
  app:
    dir: .
    dist: dist
    config_template: index.html
    skip_deploy: true

tc visualize of the above topology shows the following:

Now do tc create -s yoda --profile PROFILE and open dist/index.html:

This is a simple example of how we can compose routes, events, functions and channels to create a REST API with async response and a progress bar.

Authorization

We can either have a custom authorizer (function) or cognito (OIDC provider). If cognito, tc will create all the required user pool and app clients. It will render the Issuer, client details in the config_template of the page app and set it up for an automatic login flow using OIDC. See example in tc/examples/pattersn/rest-auth/app

name: example-rest-auth

routes:
  /api/message:
  authorizer: cognito
    method: POST
    event: ProcessStart

...

How does the composition work ?

tc implicitly creates a transducer function (lambda) for the topology and uses Lambda Destinations to orchestrate the composition on AWS. The transducer is topology-aware and can resolve the input/output format given the name of the entity. It also resolves all the required permissions, keys, target hosts thereby keeping the composition abstract and pure.
